- Size: 50cbm
- Place of Origin: Shandong
- Brand Name: CIMC Dongyue
- Model Number: ZJV9400JPDY
- Weight: 7000.000 kg

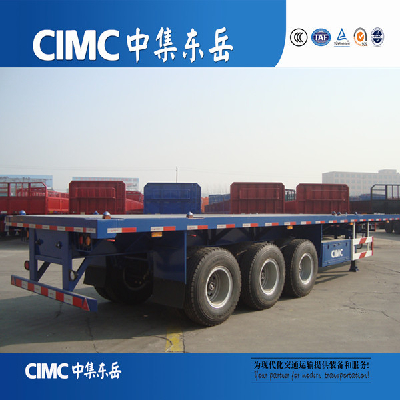

Application: 40ft and 20ft container or other stuff transportation
Parameter
Item | Specifications |
Loading weight | 60Tons |
Overall dimension | 12500mm(L)*2500mm(W)*1550mm(H) |
Main Beam | Material:Q345B |
Dimension: Upper plate:16mm Middle plate:10mm Down plate:18mm | |
Height:500mm | |
Axle | Brand:Fuwa |
3*13Tons | |
Suspension type | Mechanical type |
Leaf spring | 10/10/10 |
Tire | Brand: Triangle |
11.00R20 | |
Quantity: 12 Sets | |
Landing gear | Brand:JOST |
Two Speed | |
Container locks | 12 pcs |
Platform thickness | 3.0mm(checked plate) |
Accessories | Brake:6 Double-chamber |
Spare wheel carrier:2 unit | |
Side marker lamp:LED type | |
Receptacle:7 ways(7 wire harness) | |
Tool box: 1pcs | |
Shipping terms | 15 working days after deposit by 30% |
Item Specifications Loading weight 60Tons Overall dimension 12500mm(L)*2500mm(W)*1550mm(H) Main Beam Material:Q345B Dimension: Upper plate:16mm Middle plate:10mm Down plate:18mm Height:500mm Axle Brand:Fuwa 3*13Tons Suspension type Mechanical type Leaf spring 10/10/10 Tire Brand: Triangle 11.00R20 Quantity: 12 Sets Landing gear Brand:JOST Two Speed Container locks 12 pcs Platfor
Package
2. Cut the rear part which can load two sets in one 40ft container ;
3. Keep the trailer original but load two sets in one 45ft container.
