- Size: 70
- Place of Origin: Shandong
- Brand Name: CIMC
- Model Number: Fence Semi Trailer
- Weight: 7000.000 kg
Main specification | |

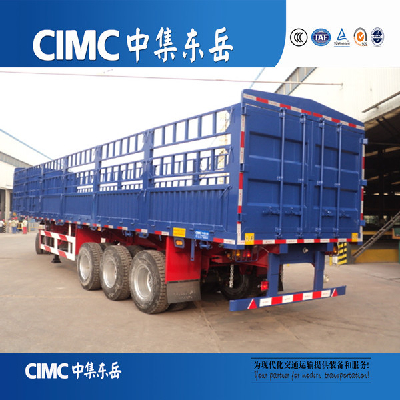

type | CIMC 3 Axle Fence Semi Trailer With Stake |
Loading Weight | 40 Ton |
Overall dimension | 13000 *2500 * 3400 mm |
Main beam | The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm,middle plate is 8mm. |
Side beam | 14# U shaped steel |
Chassis | |
Traction pin | 90# or 50# |
Land gear | JOSTBrand |
Axle | 13ton |
Axle brand | FUWA |
Suspension type | CIMC suspension |
Laeaf spring | 10/10/10 |
Tire | Triangle Brand, 1100R-20-16PR, |
Side wall details | 600mm height, 3mm thickness |
Frame | |
platform thickness | 3mm |
Accessories | |
Brake | 6 Double-chamber |
Tool box | 1 unit |
Spare wheel carrier | 2 units |
Side marker lamp | LED type |
Voltage | 24V |
Receptacle | 7ways (7 wire harness) |
- Size: 70
- Place of Origin: Shandong
- Brand Name: CIMC
- Model Number: Fence Semi Trailer
- Weight: 7000.000 kg
